장비 모델명

응용분야

EMC 엔지니어 양성

제조사

위치

장비사양

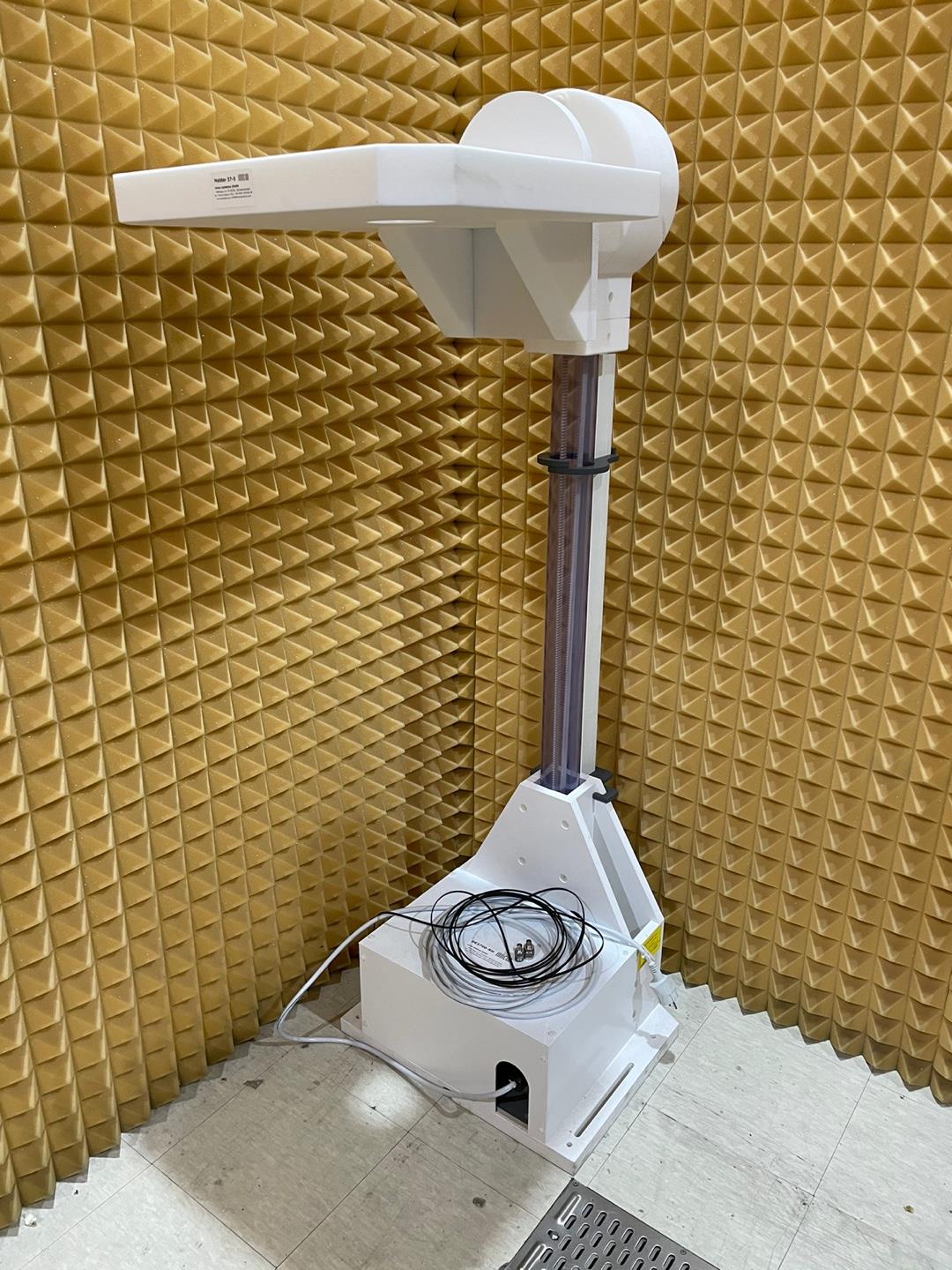

1) Turn Device (Model: DE3700)
	- Total height of rotation axis	: 1800 mm (above base plate)
	- Max. load			: 10 kg
	- Material rotation plate		: Rohacell, with dielectric constant below 1.2
	- Material bottom & side 		: Körmacell with PVC profile
	- Positioning Accuracy 		: +/- 1°
	- Rotating angle 			: -15° ~ 385°
	- Rotating time max. 		: 2,5 r/pm
	- Driven by 			: Kevlar Belt
	- Motor 				: electronic EC motor 150 W
	- Controller 			: Microcontroller
	- Drive unit shielded and radio interference suppressed; 20dB under CISPR 22 Class B
	- Temperature working range 	: +5 °C ~ +40°C
	- Input current 			: max. 1,6 A
	- Operating voltage 		: 115 V / 230 V AC (50/60Hz)

     2) Controller (Model: CO3000)
	- Data interface 			:IEEE 488, LAN (optional RS 232)
	- Device interface			: 4 Port CAN-Bus via fibre optic cable (POF)
	 				 (up to 8 Port´s & glass cable type available)
	- Controlable Devices 		: 4 Devices
	- CAN Transfer rate 		: 500 kBits/s
	- Display 			: 7" TFT 800x480 Pixel
	- Voltage 			: 100V - 240V AC 50/60Hz
	- Power 			: max. 20W
	- Fuse 				: T 2,0A, 250V
	- Size 				: 3HE 19" Rack mount (448 x 135 x250 mm)
	- Weight 			: approx. 3kg
	- Temperature range 		: 5°C to +40°C

장비소개

EMC 측정실습용 장치

담당자

소속 또는 관리 학과명
